Hey there! As a pipeline supplier, I know how crucial it is to ensure that the pipelines we provide are up to the mark. Testing a pipeline is a multi - step process that guarantees its quality, safety, and performance. In this blog, I'll walk you through the ins and outs of how to test a pipeline.
Why Testing is Important
Before we dive into the testing methods, let's talk about why testing pipelines is so important. Pipelines are used in a wide range of industries, from water supply to oil and gas transportation. A faulty pipeline can lead to leaks, which not only cause environmental damage but can also result in significant financial losses. By testing pipelines, we can identify potential issues early on and take corrective actions, ensuring that the pipelines perform as expected throughout their lifespan.
Visual Inspection
The first step in testing a pipeline is a visual inspection. This is a simple yet effective way to spot any obvious defects. You'll want to look for things like cracks, dents, or signs of corrosion on the surface of the pipeline. For example, if you're dealing with a PP White Pipe, a visual inspection can help you identify any surface irregularities that might affect its performance.
During the visual inspection, you can use tools like magnifying glasses to get a closer look at the pipeline. Check the joints and connections as well. Loose or damaged joints can lead to leaks, so it's important to make sure they're in good condition.
Pressure Testing
Pressure testing is one of the most common and important tests for pipelines. It involves applying pressure to the pipeline to check its integrity. There are two main types of pressure tests: hydrostatic testing and pneumatic testing.
Hydrostatic Testing
Hydrostatic testing uses water to apply pressure to the pipeline. The pipeline is filled with water, and then the pressure is increased to a specified level. This test helps to identify any leaks or weaknesses in the pipeline. The advantage of hydrostatic testing is that water is relatively safe and easy to handle. However, it can be time - consuming, especially if the pipeline is large.
Pneumatic Testing
Pneumatic testing, on the other hand, uses air or gas to apply pressure. This test is faster than hydrostatic testing, but it's also more dangerous because of the risk of explosion if there's a leak. Pneumatic testing should only be carried out by trained professionals with the proper safety equipment.
Non - Destructive Testing (NDT)
Non - destructive testing methods are used to detect internal defects in the pipeline without damaging it. There are several NDT techniques available, including ultrasonic testing, magnetic particle testing, and radiographic testing.
Ultrasonic Testing
Ultrasonic testing uses high - frequency sound waves to detect internal flaws in the pipeline. A transducer sends ultrasonic waves into the pipeline, and the waves are reflected back when they encounter a defect. By analyzing the reflected waves, we can determine the location and size of the defect.
Magnetic Particle Testing
Magnetic particle testing is used to detect surface and near - surface defects in ferromagnetic materials. A magnetic field is applied to the pipeline, and iron particles are sprinkled on the surface. If there's a defect, the magnetic field will be disrupted, and the iron particles will accumulate at the defect site, making it visible.
Radiographic Testing
Radiographic testing uses X - rays or gamma rays to create an image of the internal structure of the pipeline. This method can detect both surface and internal defects. However, it requires special equipment and trained operators, and there are also safety concerns associated with radiation exposure.
Flow Testing
Flow testing is used to determine the flow characteristics of the pipeline. This test helps to ensure that the pipeline can handle the required flow rate without any issues. During flow testing, the flow rate, pressure drop, and velocity of the fluid in the pipeline are measured.

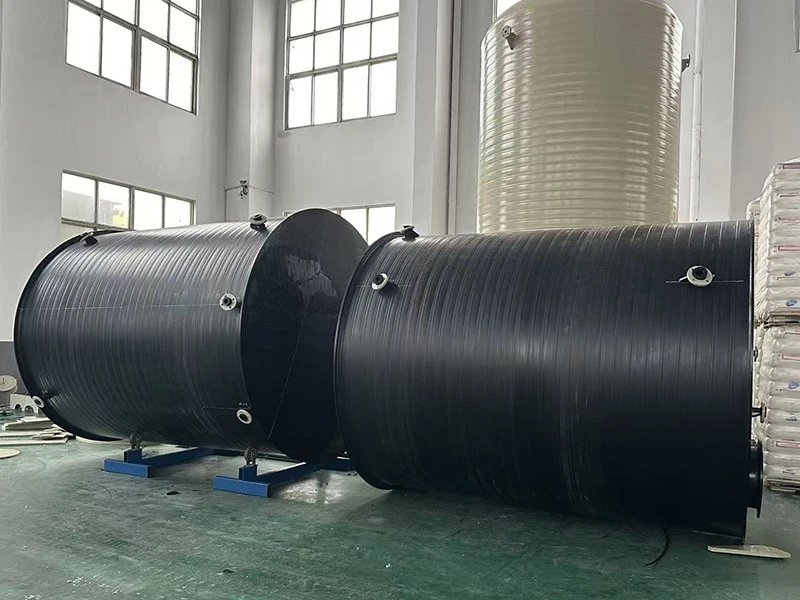

To conduct a flow test, you'll need to install flow meters and pressure gauges at different points along the pipeline. The data collected from these instruments can be used to analyze the flow behavior of the pipeline. For instance, if you're supplying a PE Spiral Wound Pipe, flow testing can help you ensure that it can meet the specific flow requirements of the application.
Chemical Analysis
Chemical analysis is another important aspect of pipeline testing. It involves analyzing the chemical composition of the pipeline material to ensure that it meets the required standards. This test can detect impurities or contaminants that might affect the performance of the pipeline.
For example, if the pipeline is made of FRPP Pipe, chemical analysis can help you verify its chemical resistance and stability. By analyzing the chemical properties of the pipe material, you can ensure that it's suitable for the intended application.
Conclusion
Testing a pipeline is a comprehensive process that involves multiple steps and techniques. By conducting visual inspections, pressure tests, non - destructive testing, flow testing, and chemical analysis, we can ensure that the pipelines we supply are of the highest quality.
If you're in the market for high - quality pipelines and want to learn more about our testing processes or have any questions about our products, feel free to reach out. We're always happy to have a chat and discuss your specific needs. Whether you need a PP White Pipe, PE Spiral Wound Pipe, or FRPP Pipe, we've got you covered. Let's work together to find the perfect pipeline solution for your project!
References
- ASME B31.8 - Gas Transmission and Distribution Piping Systems
- ASTM D2241 - Standard Specification for Polyethylene (PE) Plastic Pipe (DR - P Ratios) Based on Controlled Outside Diameter
- API 5L - Specification for Line Pipe
